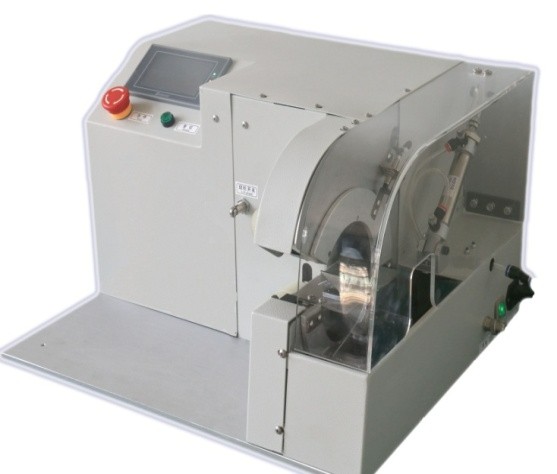

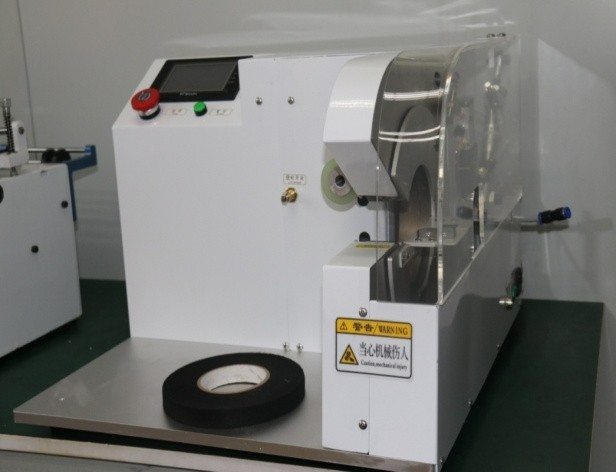

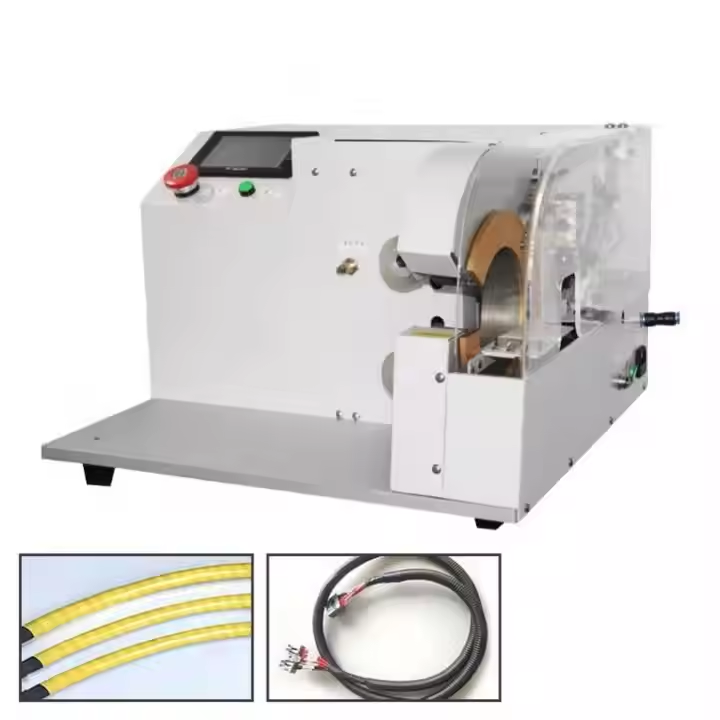

The semi automatic tape winding machine is compatible with different types of tape materials without release paper, such as Burkina Faso Tape, PVC tape, etc. It can switch between different winding modes: point winding at the same position, and spiral winding at different positions.

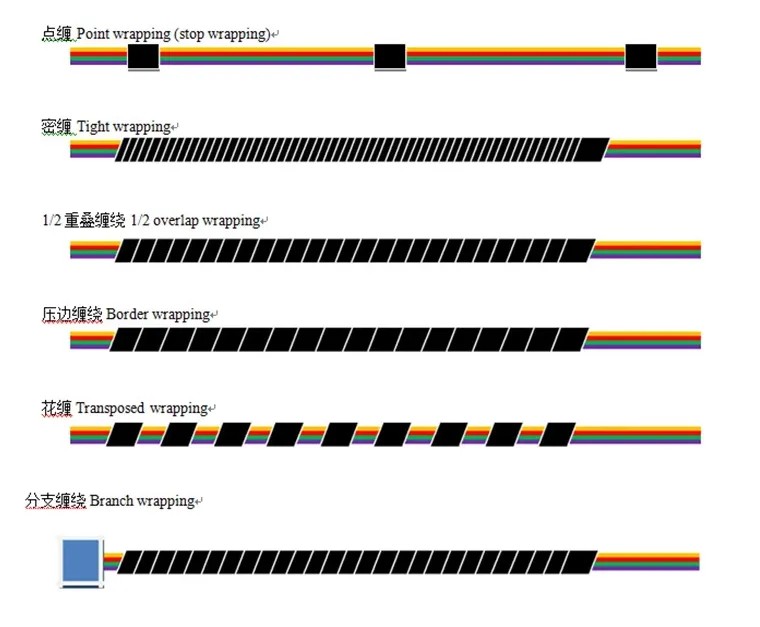

Features:
Full wrapping: The tape is wrapped around the entire harness in overlapping manner.
The area of overlapping tape wrapping can be adjusted, such as overlapping by half, one third, or one quarter.
Point wrapping: The tape is wrapped around a point of the harness according to the number of turns. The number of turns can be set to one turn, two turns, or more.
Flower wrapping: The tape is wrapped around the harness without overlapping and is separated by a certain distance. The spacing distance can be adjusted.
Specifications:
Machine model: HL-303XH
Length, width and height: 56*54*39cm
Maximum applicable wire diameter: Ф40mm
Applicable tape: flannel, wax tape, electrical tape
Diameter of tape: less than 170mm can wrap 3-30 wire diameter, less than 140 can wrap 3-40 wire diameter
Width of tape: 5-25 (other sizes need to be customized)
Inner hole size of tape: Ф76, Ф37 is usually equipped with Ф76. Please inform us in advance for other sizes
Wrapping length: unlimited
Voltage: 220v/110v
Weight: 55KG
