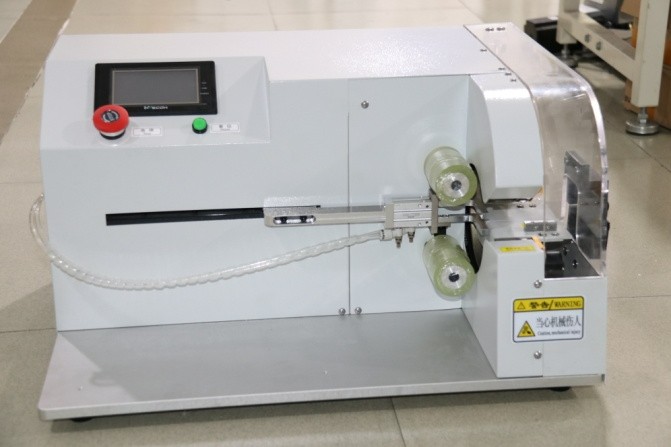

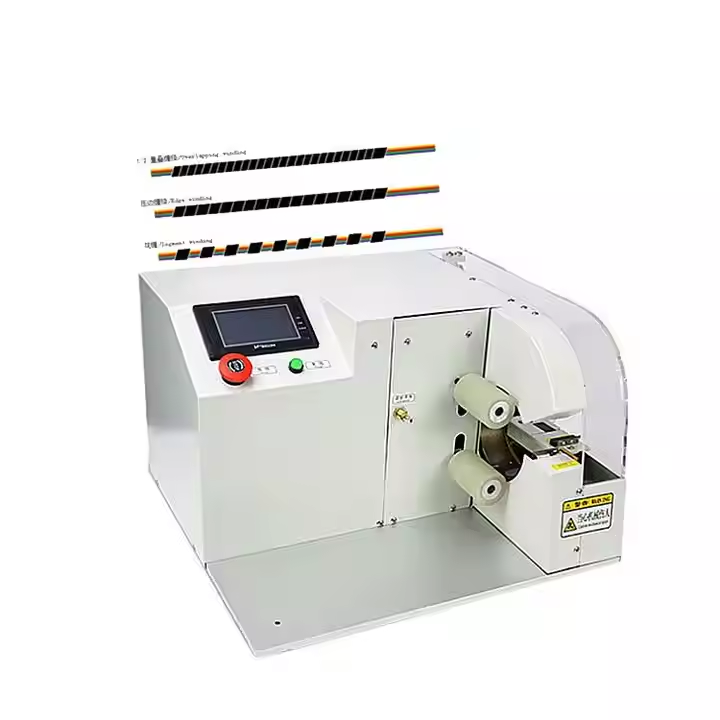

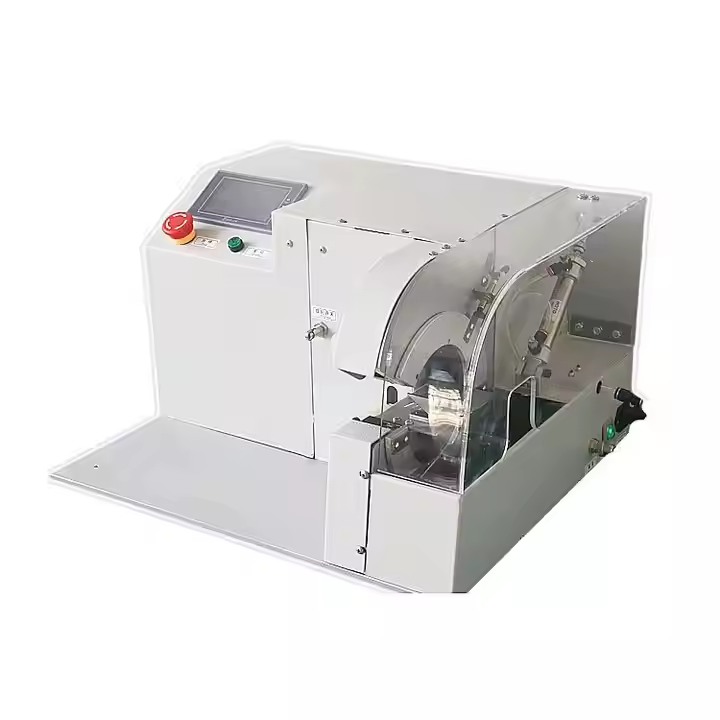

Automotive Harness Tape Winding Machine

Features：

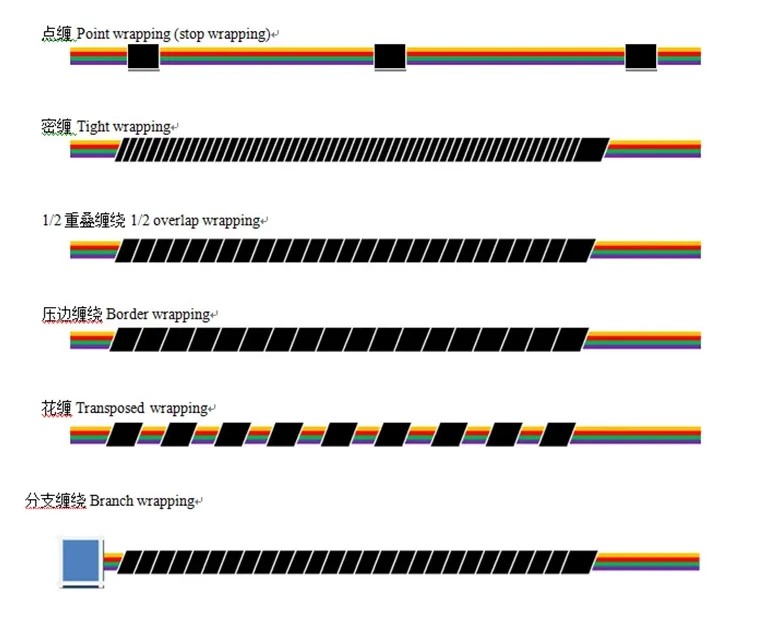

Full wrapping: The tape is wrapped around the entire harness in overlapping manner.

The area of overlapping tape wrapping can be adjusted, such as overlapping by half, one third, or one quarter.

Point wrapping: The tape is wrapped around a point of the harness according to the number of turns. The number of turns can be set to one turn, two turns, or more.

Flower wrapping: The tape is wrapped around the harness without overlapping and is separated by a certain distance. The spacing distance can be adjusted.

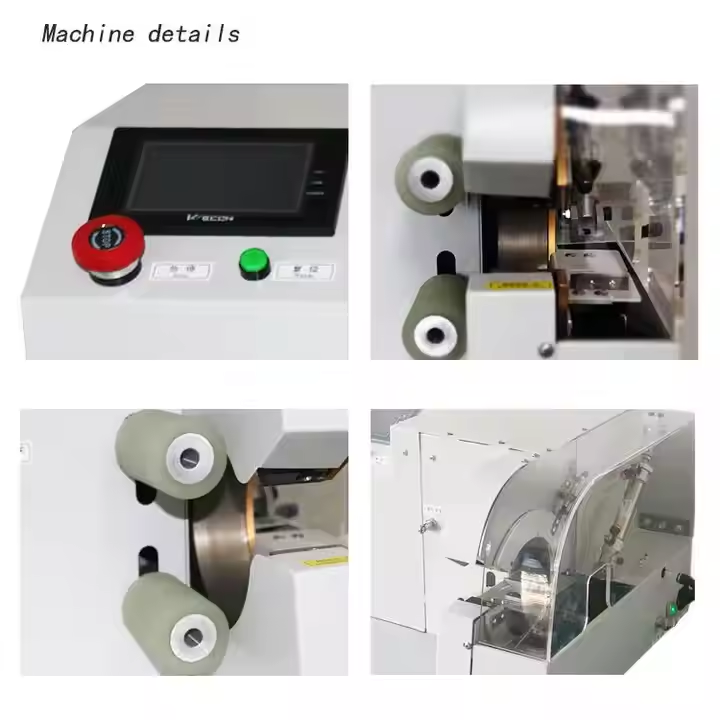

This model contains pneumatic clamps, which replace manual wire pulling from the wire pulling part to achieve uniform winding of the entire wire.

Specifications：

Machine model: 303XL

Length, width and height: 625*475*335mm

Applicable maximum wire diameter: Ф30mm

Host speed (rpm): 4500

Applicable tape: flannel, wax tape, electrical tape

Diameter of tape: less than 110mm (customizable within 170mm)

Width of tape: 5-25 (other sizes can be customized)

Inner hole size of tape: Ф37, Ф32 is usually equipped with Ф37. Please inform us in advance for other sizes

Wrapping length: unlimited

Voltage: 220v/110v

Weight: 58KG
