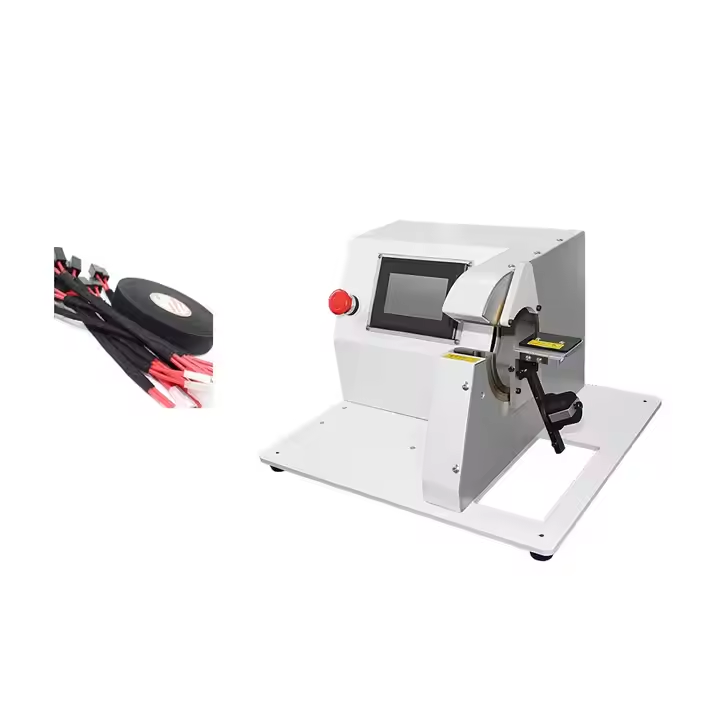

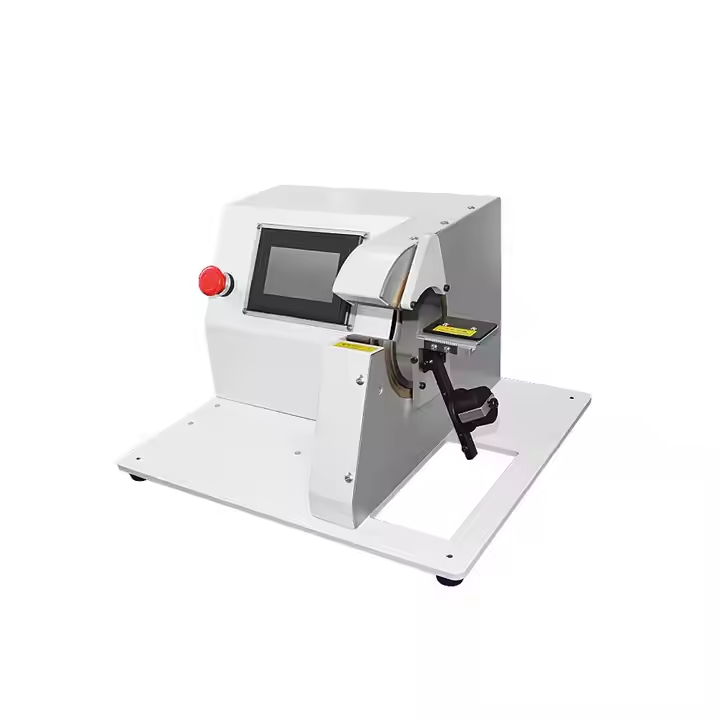

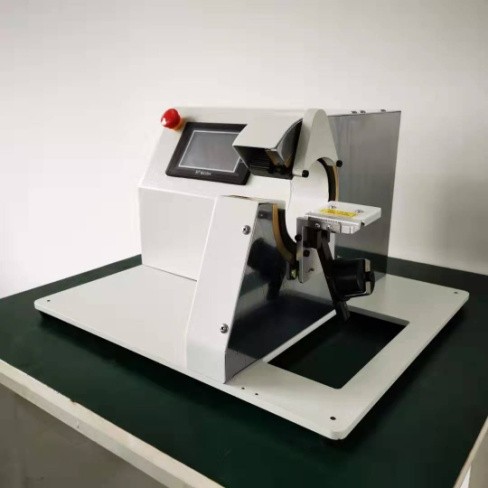

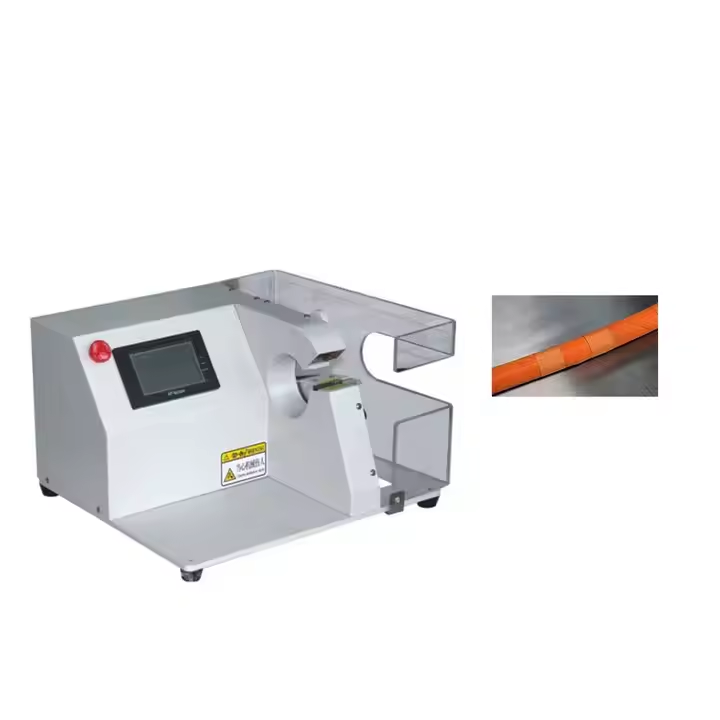

Wire Tape Wrapping Machine Cable Harness Taping Machine

Wire Tape Wrapping Machine Cable Harness Taping Machine

The wire harness fixed point tape wrapping machine is a high-quality and efficient tool designed for securely wrapping tape around wire harnesses. This machine is essential for industries that require precise and consistent tape wrapping for their wire harnesses.

Model: HL-303T
Brand: Hilong

Features：

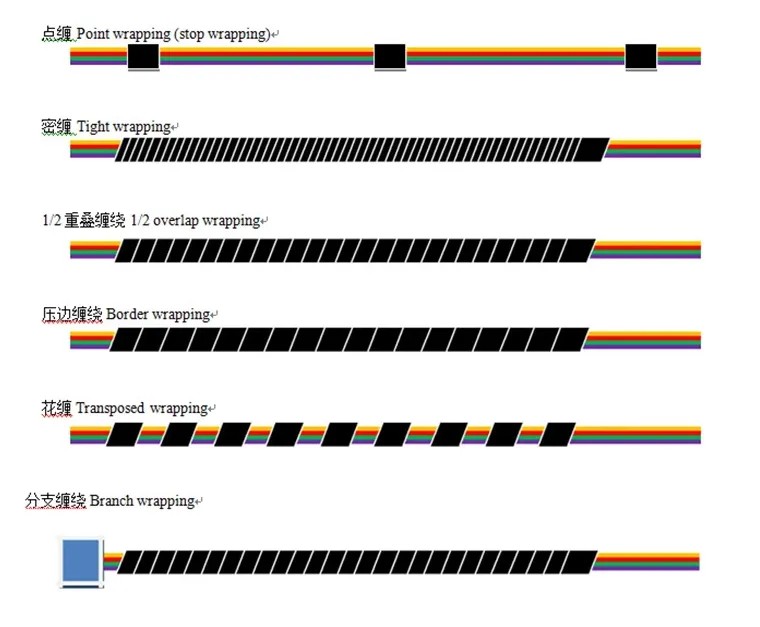

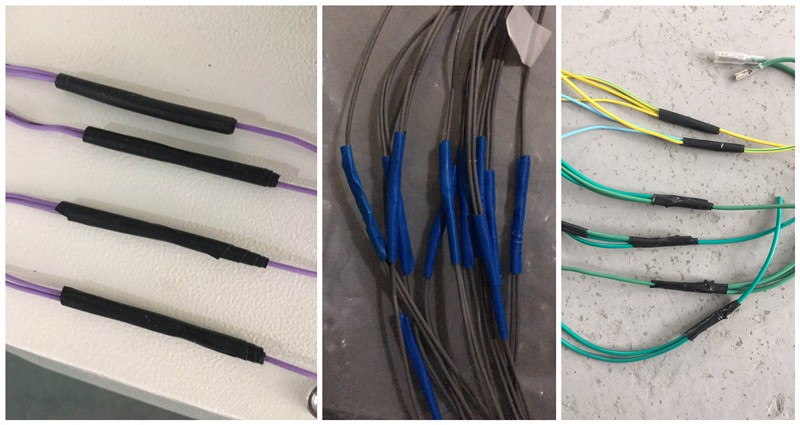

Full wrapping: The tape is wrapped around the entire harness in overlapping layers, and the area of overlapping tape wrapping is manually adjusted.

Point wrapping: The tape is wrapped around a point of the harness in a certain number of circles, and the number of circles can be set to one, two or more.

Specifications：

Machine model: HL-303T

Length, width and height: 430*380*260mm

Operation mode: touch screen

Winding method: spiral winding

Applicable wire diameter: Ф3mm-25mm

Host speed (rpm): 200-1400 rpm adjustable

Applicable tape: PVC, vinyl, cloth, felt, tape, etc.

Tape outer diameter: maximum 110mm

Tape width: 9-30mm

Tape inner hole size: Ф38 (option: Ф32) Notify in advance

Winding length: unlimited
