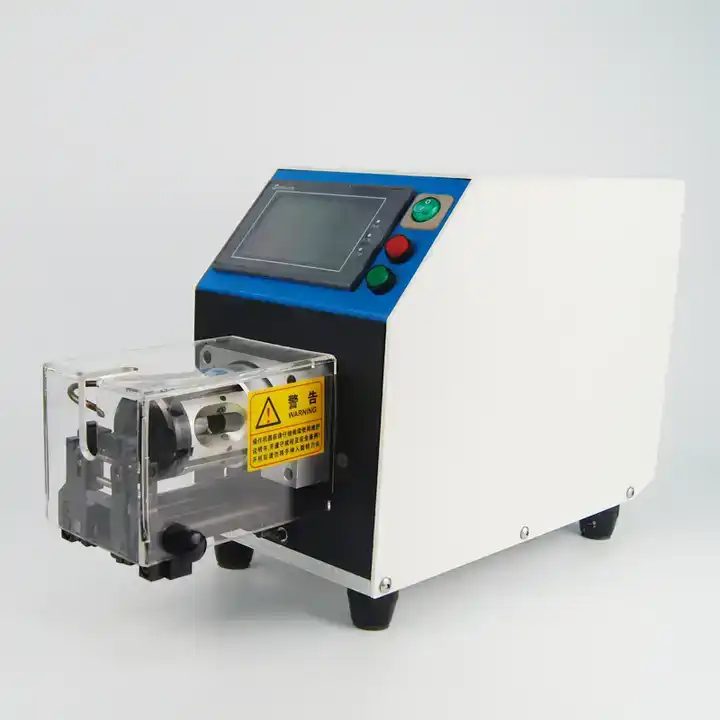

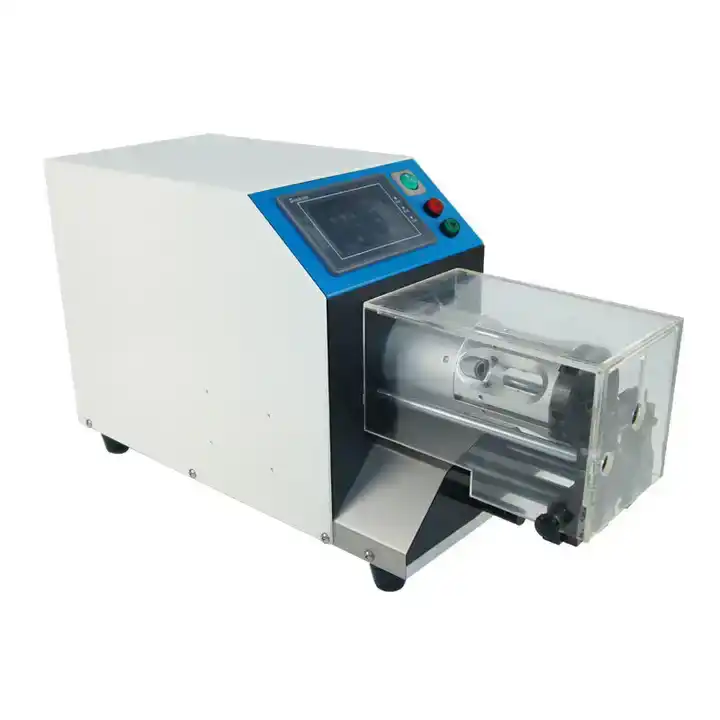

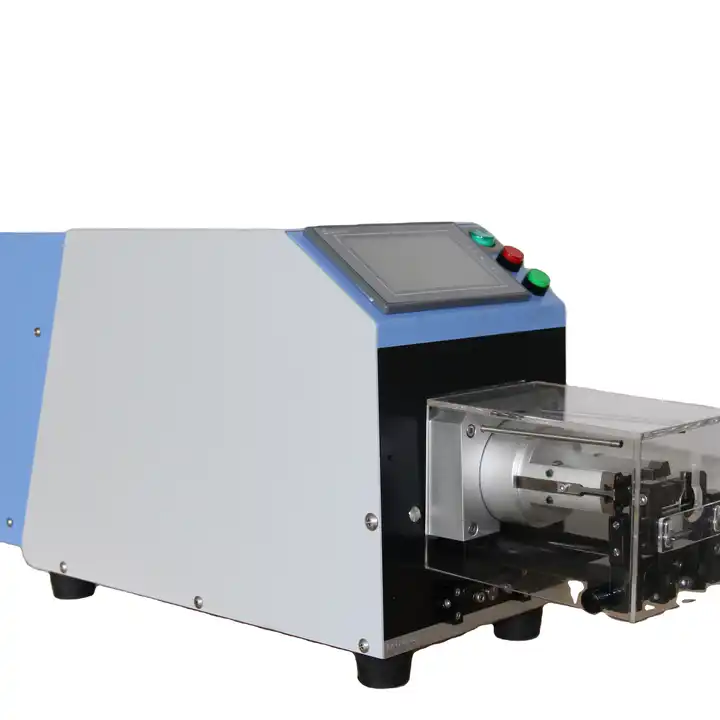

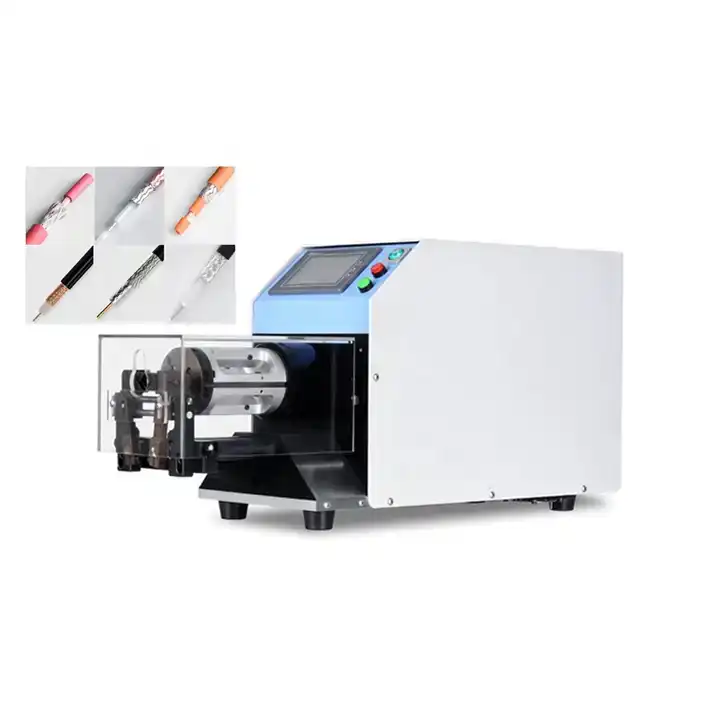

Semi-automatic coaxial cable stripping machine

Features：

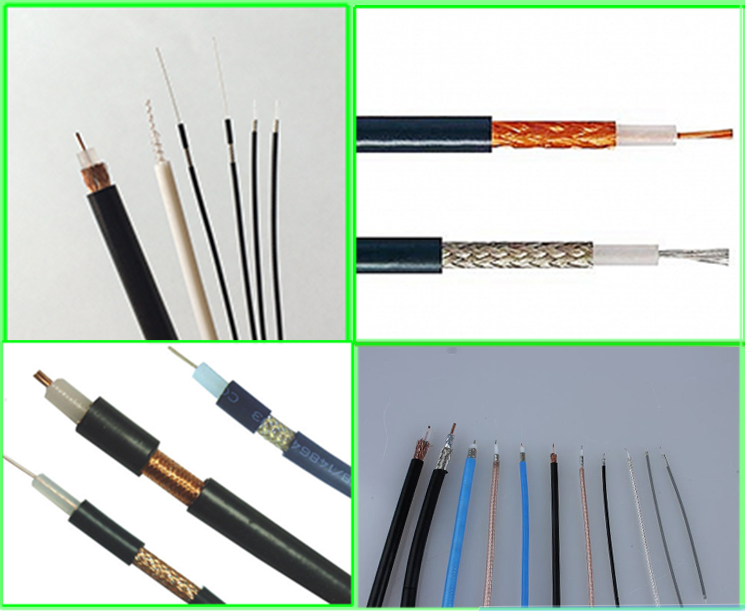

• Cable processing type: Coaxial cable, triaxial cable, shielded cable and rigid cable.

• Processing wire type: rf1.13, rf1.78, rf3.16, rg58, rg59, rg1.41, etc.

• The machine provides flexible storage and recall of data for easy processing of cables of different diameters.

• The blade is made of Swiss tungsten steel to ensure the life and accuracy of the blade.

Specifications：

Model: HL-B2520

Display mode: touch screen

Applicable wire: coaxial cable, automotive cable

Display interface: Chinese LCD 95mm*50mm

Working power supply: AC220V/110V 50/60HZ

Power: 800W

Stripping length: ø0.1mm-ø200mm

Dimensions: 1000*225*400mm

Stripping length setting unit: 0.01mm

Weight: 50kg

Cutting wire diameter range: ø3.0-ø25mm

Drive mode: motor\ball screw drive

Cutting depth setting unit: 0.01mm

Stripping method: rotary knife

Maximum number of stripping layers: 9 layers

Tool material: imported tungsten steel

Working environment: -5—45 degrees Dry and vibration-free work surface

Storage capacity: 99 processing parameter data
