35mm² motor lifting conduit, motor screw lifting wheel ,Knife holder with stepper motor

35mm² motor lifting conduit, motor screw lifting wheel ,Knife holder with stepper motor

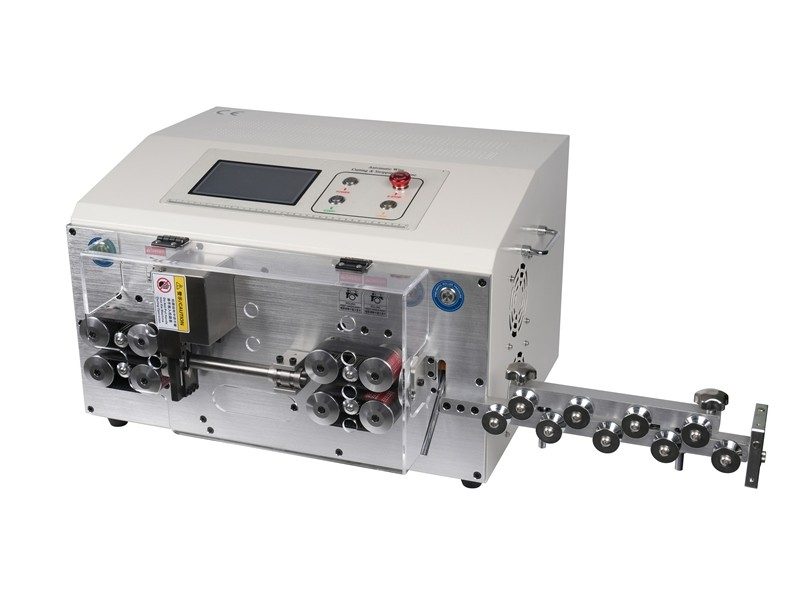

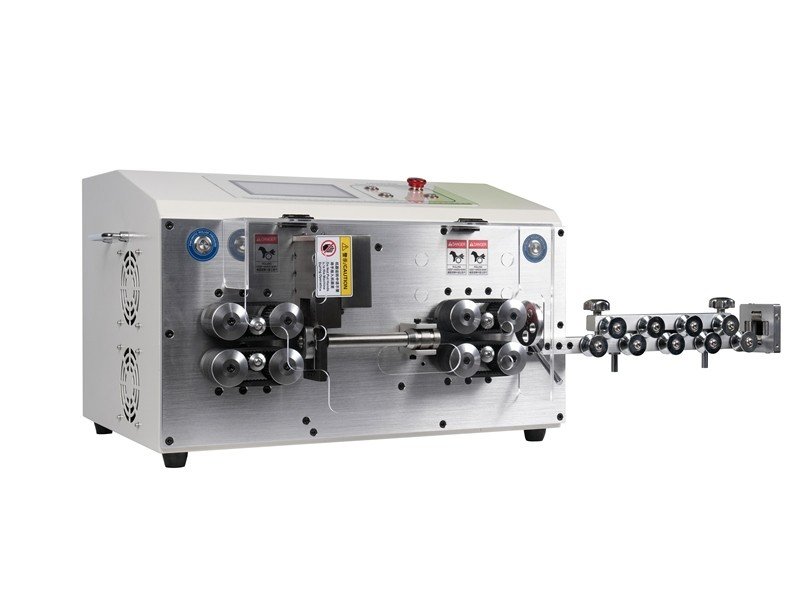

This is a fully automatic cable cutting and stripping machine. It can complete wire cutting, wire stripping at both ends, and wire stripping in the middle.

Model: HL-MAX2-ST35
Brand: Hilong

Model：HL-MAX2-ST35

Features：

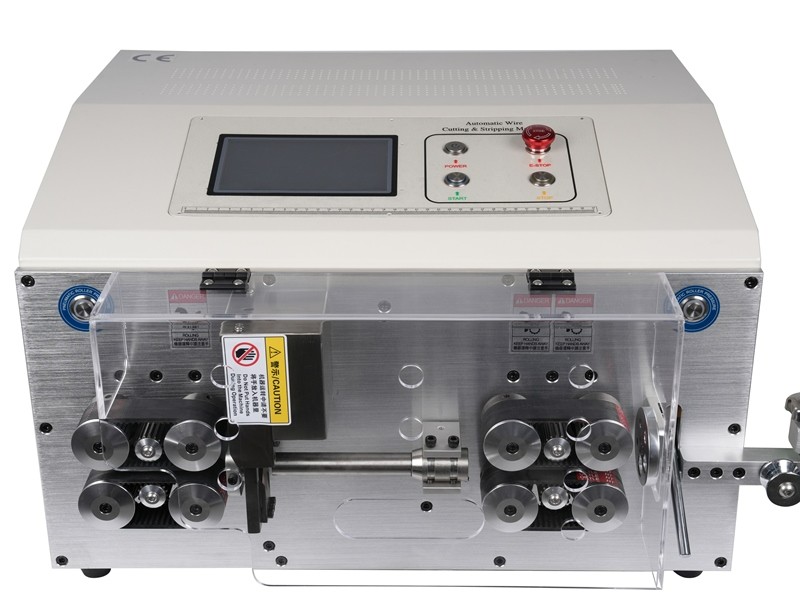

○ touch screen LCD display

○ Function: wire cutting, both ends stripping, middle stripping

Specifications：

Machine dimension: 560*460*400mm

Weight：80KG Power：600W

Electrical connection: 110V/220V 50HZ/60HZ

Operation interface: 7 inch Chinese and English switching touch screen display

Wire cross section: MAX￠13mm (Round sheath wire)

Wire cross section: 1.0~35mm² (BV wire maximum 25mm², BVR wire maximum 35mm²)

Max conduit inside diameter:￠15mm (Motor driven jump tube, no need to connect air pump)

Wire length range：Max 100m

Round sheath outer wire strip length: Front end:1-150mm, rear end:1-100mm

50mm² wire strip length：Front end:1-80mm; rear end:1-80mm

Blade material: high-speed steel

Transport speed: (L=200mm） 3000~4000pieces /hour

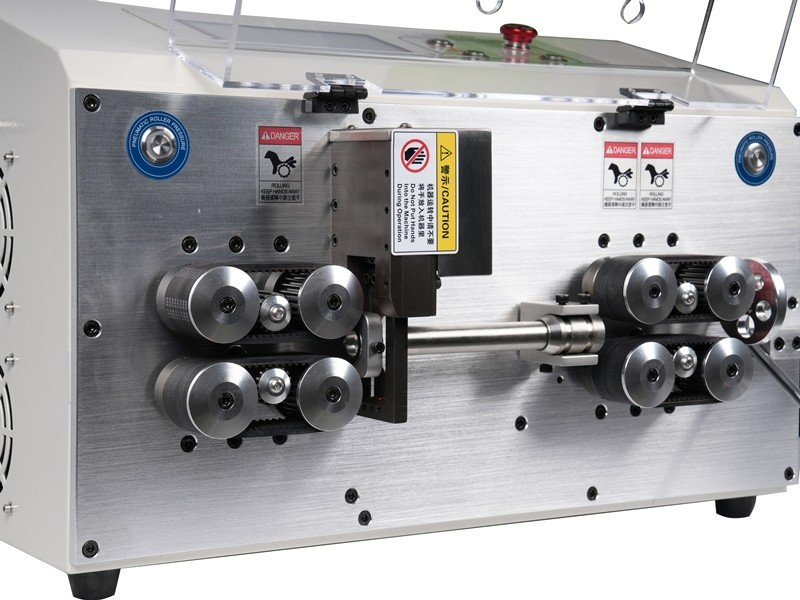

Drive method for inlet and outlet weir wheels: screw motor lifts the wheels, and the inlet and outlet wire pressure wheels are automatically adjusted up and down

Driving mode: 8-wheel belt drive (silent hybrid stepper motor, 0.1mm forward per step)
