Coaxial cable stripper

Features：

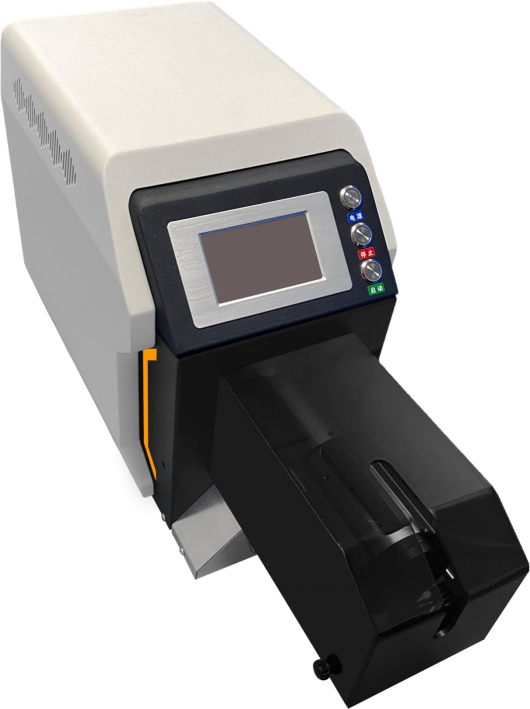

• Concept: 20025 is a semi-automatic coaxial wire peeling machine, which is used to process coaxial wire, triaxial wire, multi-core wire and single core wire. It has the latest electronic design, user-friendly display plane, accurate mechanical stability and excellent peeling quality. The machine has a program database and 99 program memories, which provides the most flexible and efficient way for your production.


Special functions:

■ Suitable for global power supply: AC220V 50 60Hz

■ Diagnostic function

■ The processing database can be connected to the computer for storage

■ Small, light, can be placed on the desktop, easy to carry

■ Different user levels of password protection

Specifications：

Maximum cable diameter:23mm

Minimum cable diameter:1.41mm

Diameter increment:0.01mm

Maximum peeling length:200mm

Number of layers:10

Clamp clamping force:Motor control mode, adjustable in 10 different levels

Processing capacity:700-800 PCS / hour (depending on cable type and procedure)

PC connector:RS 232, foot switch

Program memory capacity:99 cable programs can be saved

Noise:50dB (A)

Power:AC220V 50 60HZ

Weight  :51kg

Size    ( L x W x H ):960x 285x 380

Noted: Even if it meets the above technical specifications, it may not be processed. It is recommended to provide samples and processing specifications or contact our company before purchase. (technical specifications are subject to change without notice.)
