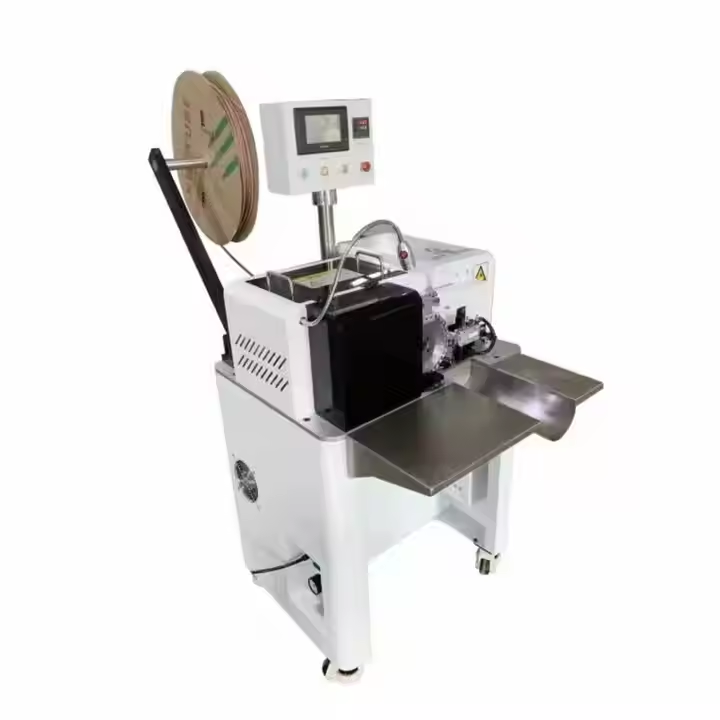

Wire Harness Heat Shrink Tube Machine

This machine is suitable for wearing heat shrinlable sleeves onto AC, DC cables and other electronic wire ends, as well as cable terminals.

Model: HL-28
Brand: Hilong

EMAIL

Features

 Automatic heat shrinkable tube inserting with printing function machine , Thermal printing is used,

Machine can process multi core wire at one time ,and Machine can save 20 kinds program to printing information ,same or different words all can printing ,

For example , 10 core sheathed wire that need printing different words on each core , This is ok.


1. High efficiency, save labor cost.can process multi core wire at one time
2. Compared with the hot air cylinder, the power consumption of this machine is lower. Save effort and power.
3. The tube length, specifications, heat shrink temperature and time can be adjusted by debugging and replacing the corresponding accessories.
4. Touch English screen , easy operation.


Specifications

Applicable sleeves length

6~35mm (Match fixture for different length )

When the length exceeds 5mm, Can't use the same fixture .

Applicable sleeves OD

 1.0~ 6.0mm (Other size can customized by evaluating feasibility)

Cutting accuracy

±0.3mm

Positioning accuracy

±0.2mm

Power

1450W

Production efficiency

700~1,500 PCS/H (depending on the sleeve size and quantity)

Yield rate

99% (under the premise of correct operation by personnel)

Weight

about 200 kg

Dimensions

700mm*800mm*1,220mm (L*W*H)

Power supply

AC220V 50HZ

Air pressure

0.5-0.6Mpa (compressed air must be dry, sufficient and oil-free. Otherwise it will affect the performance of the equipment).
