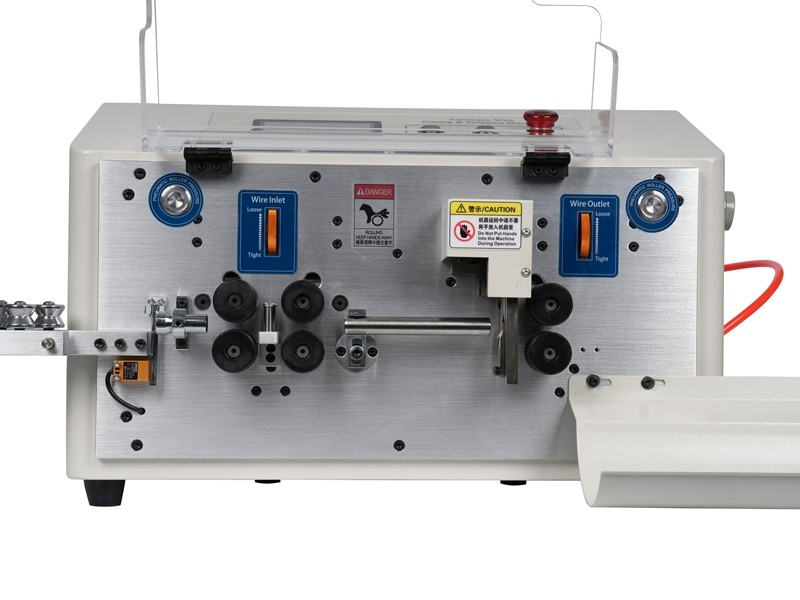

Upgraded 6-wheel round sheath wire stripper

Model：HL-HT2/6N

Features：

○ Function: cable cutting, outer jacket and inner conductor stripping
○ Optional: MES system, Internet of Things system, fixed-point coding function, middle stripping function, external auxiliary equipment alarm;
○ User-friendly system with intuitive operation via 7” color touchscreen;
○ Modular interface, easy to link accessories and peripheral equipment;
○ Modular design, can be upgraded in the future;
○ Various accessory options to customize the system. Special cable processing, non-standard customization.

Specifications：

Weight：43KG

Machine dimension: 560*460*365mm

Power：550W

Operation interface: English/Chinese (LCD display)

Wire length range: 1～10000mm

Length accuracy： ± (0.002xL)mm

Wire cross section: Maximum outer diameter: 12mm (Round sheath wire)

Max conduit inside diameter:￠13mm

Wire material:PVC,Teflon,Braided,Fiberglass wire

Strip length：Full stripping of front end:0-200;Full stripping of rear end:0-100mm

Blade material:  High-speed steel

Transport speed: (L=200MM piece/hour） 3000-4000 pieces

Driving mode: six-wheel drive (silent hybrid stepper motor, 0.1mm forward per step)
