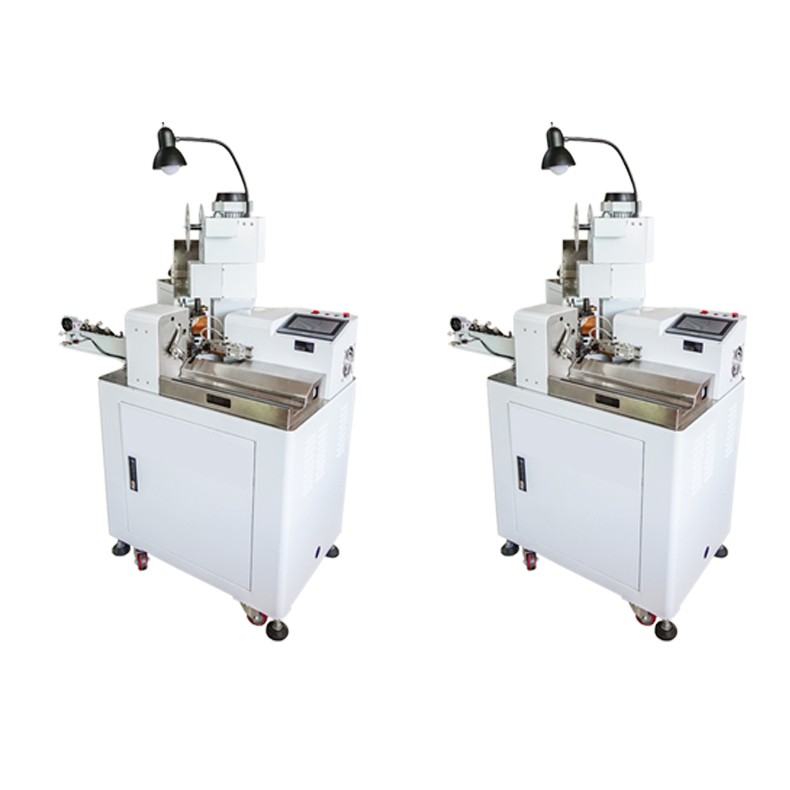

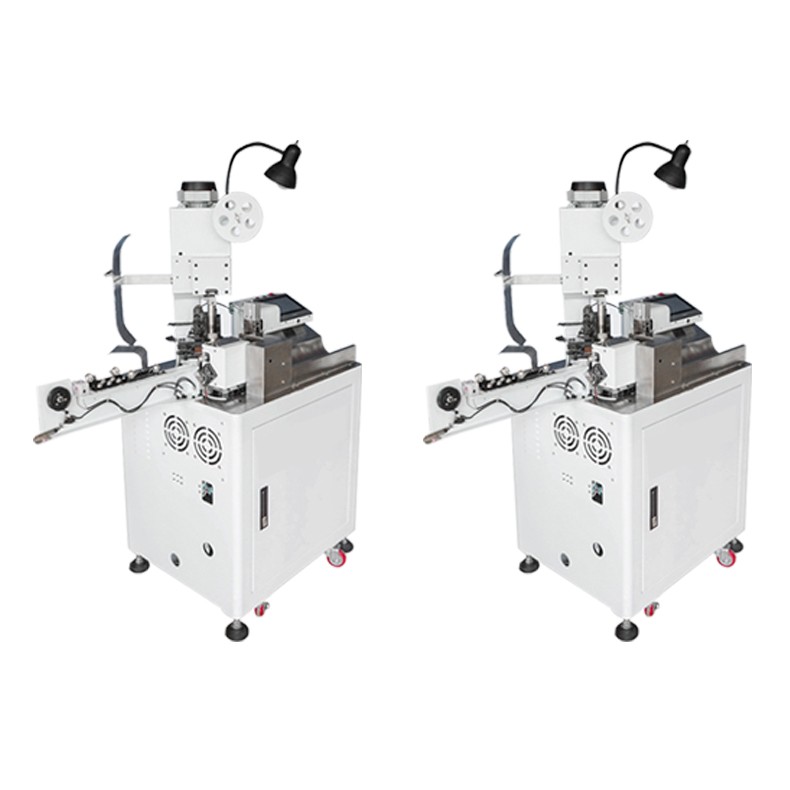

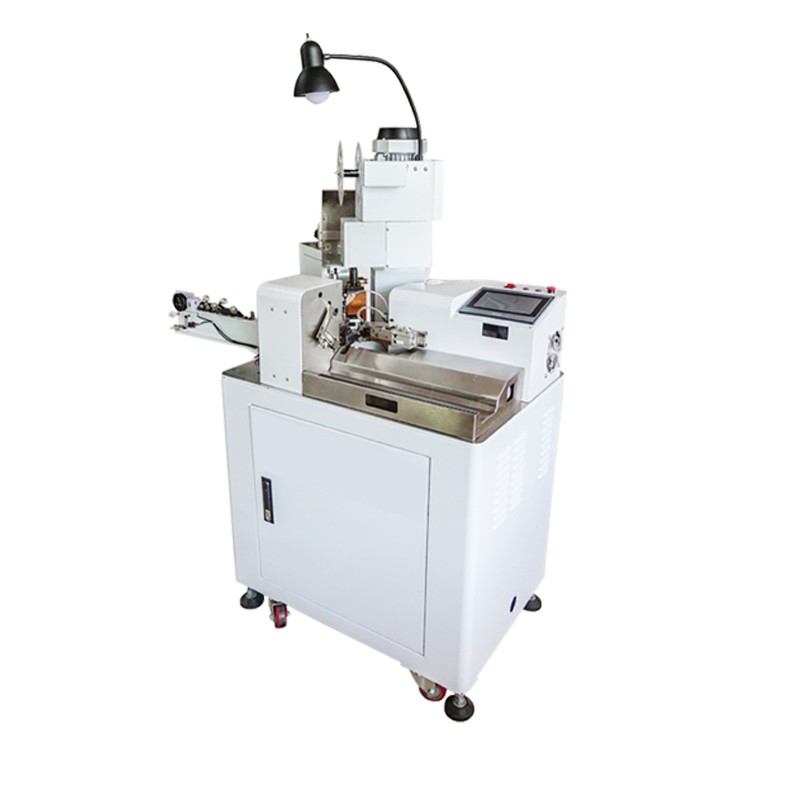

Full Automatic Terminal Crimping Machine one head with tin plated

Full Automatic Terminal Crimping Machine one head with tin plated

Full automatic terminal crimping machine, using high-tech frequency conversion technology, electronic precision positioning, when pressure welding machine working noise is smaller than the traditional terminal, and save electricity, the variable is more convenient and quick, avoid the traditional terminal clutch, cable lug crimping machine.

Model: HL-R01
Brand: Hilong

Features：

1. Full automatic terminal crimping machine

2. Built-in frequency converter, high speed and low noise

3. One machine is suitable for various terminals, very easy to change mold.

4. Support manual mode and automatic mode, you can adjust the machine easily in manual mode.

5. LED display will show how many terminals have been crimped.

6. Speed is adjustable, crimping die designed according to your requirement.

Specifications：

Model	HL-R 01
Name	Full automatic one end terminal crimping machine with tin plated
Function	one side cutting, striping and crimping ,another side tin plated machine
Size	720L850W1650H
Weight	265KG
Display	Color LCD touch screen
Mode of operation	Auto run + manual operation
Blade adjustment method	Motorized adjusting
Blade material	Swedish ASP60 powder high speed steel cutter materials
pneumatic parts	AirTAC
Screw guide	Taiwan Shangyin
wire cutting length	45mm-9999mm
cutting tolerance	MAP range:1mm+Cut off the degree * below 0.2%
Wire stripping/tin length	4mm-10mm
Suitable wires	AWG18—28#
cutting speed	4300 PCS/hour
working ability	2200PCS/hour
Crimp force	standard 2.0T Other pressure relays need to be customized
Air pressure	5.0KG (stability, dry air)
Power	AC 220V
Rated power	2.5KW
Detector	1.terminal exists or not 1.wire exists or not 3.press exists or not 4.air pressure exists or not
