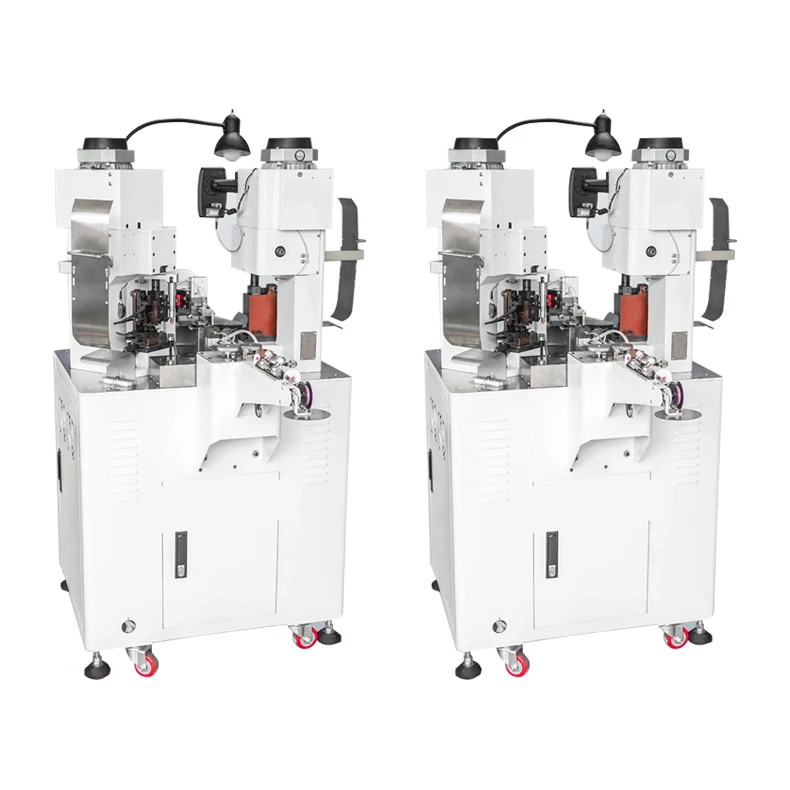

Full Automatic Terminal Crimping Machine Two head

Full Automatic Terminal Crimping Machine Two head

Full automatic terminal crimping machine, using high-tech frequency conversion technology, electronic precision positioning, when pressure welding machine working noise is smaller than the traditional terminal, and save electricity, the variable is more convenient and quick, avoid the traditional terminal clutch, cable lug crimping machine.

Model: HL-02
Brand: Hilong

Features：

1. Full automatic terminal crimping machine

2. Built-in frequency converter, high speed and low noise

3. One machine is suitable for various terminals, very easy to change mold.

4. Support manual mode and automatic mode, you can adjust the machine easily in manual mode.

5. LED display will show how many terminals have been crimped.

6. Speed is adjustable, crimping die designed according to your requirement.

Specifications：

Model	HL-02
Name	Full automatic double end terminal crimping machine
Function	Two side cutting, striping and crimping machine
Size	800L830W1500H
Weight	315KG
Display	Color LCD touch screen
Mode of operation	Auto run + manual operation
Blade material	Swedish ASP60 powder high speed steel cutter materials
Blade adjustment method	Motorized adjusting
pneumatic parts	AirTAC
Screw guide	Taiwan Shangyin
cutting tolerance	MAP range:1mm+Cut off the degree * below 0.2%
wire crimping length	1.5mm-12mm
wire cutting length	45mm-9999mm
Suitable wires	AWG18—28#
cutting speed	6500 PCS/hour
working ability	4500PCS/hour
Crimp force	standard 2.0T Other pressure relays need to be customized
Air pressure	5.0KG (stability, dry air)
Power	AC 220V
Rated power	2.5KW
Detector	1.terminal exists or not 1.wire exists or not 3.press exists or not 4.air pressure exists or not
