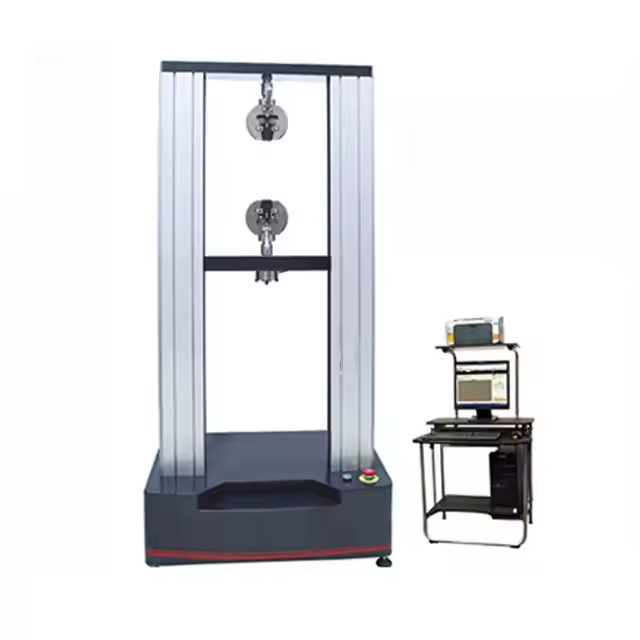

Dual Column Tensile Testing Machine

The dual column floor standing tensile testing machine is designed to test a wide range of materials, including, but not limited to: plastics, films, paper, packaging materials, filter material, adhesives, foils, food, toys, medical devices and components, in tension, compression, flexure, shear, and peel.

Model: HL-50KN
Brand: Hilong

Features：

lt is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing.

lt is widely used in the corresponding industries, research and development, test institutes and training centers etc.

Specifications：

Product number	HL-5K	HL-10K	HL-20K	HL-50K
Load	5KN	10KN	20KN	50KN
Journey	220mm
Test speed	30-240mm/min
Cumulative function	A single test can accumulate 9999 times
Cycle Test	Automatic test mode 9999 times
Signal input	Automatically stop at the specified time according to the push-pull force gauge instruction
Protective function	Voltage overload protection/limit protection/overload automatic stop protection
Function	Optional digital push-pull force gauge with upper and lower limit warning settings/breakage, etc.
Input voltage	220V/50HZ
Product Size	410X260X1000mm
Product Specific	You can choose between automatic measurement and manual measurement. You can perform cyclic testing and record the number of tests.
