Double wire stripper

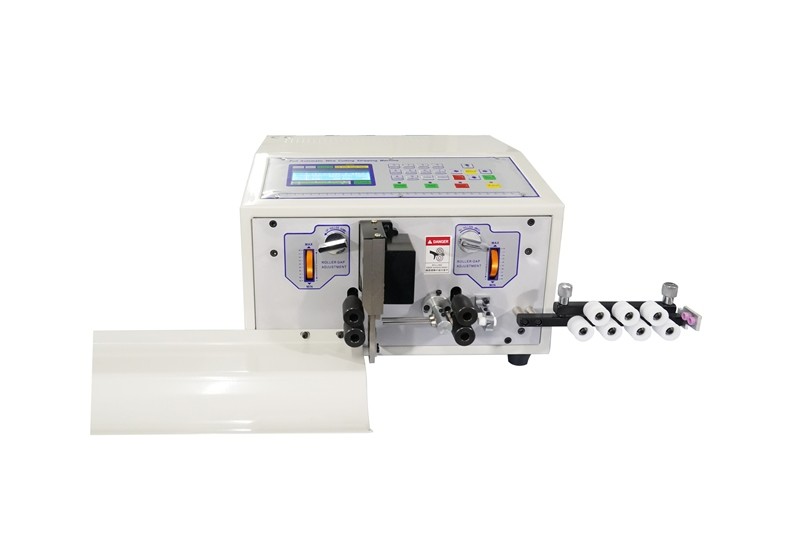

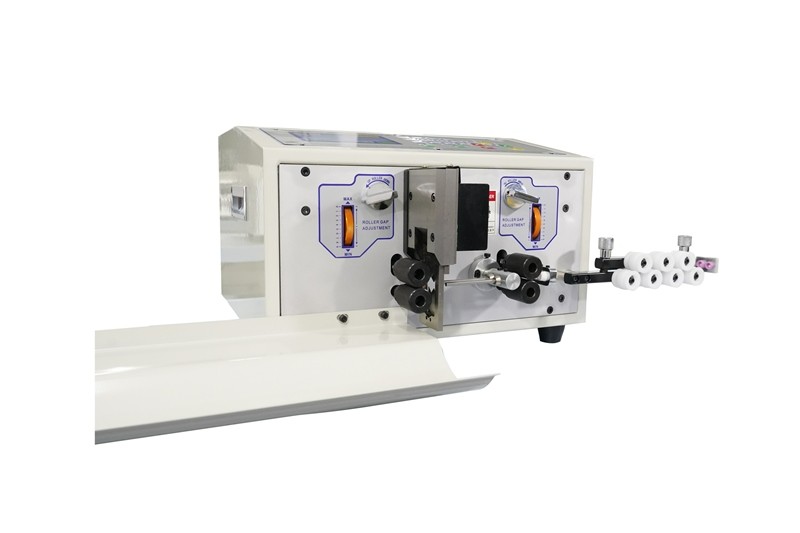

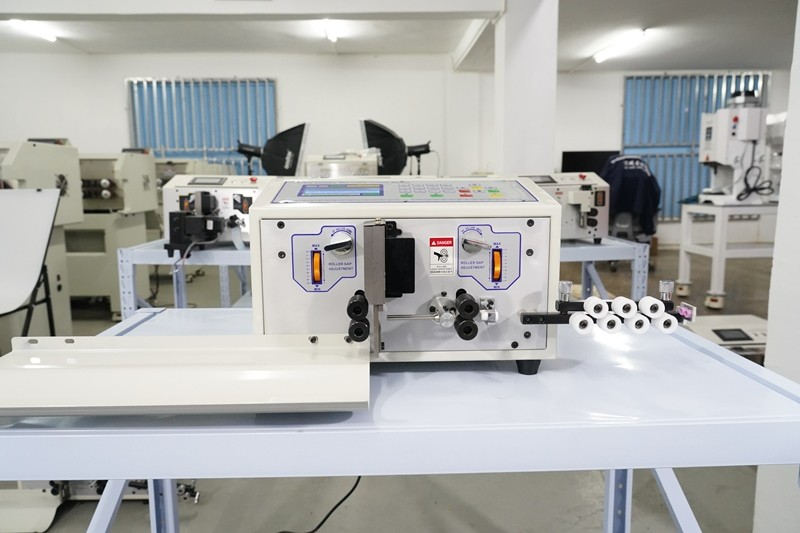

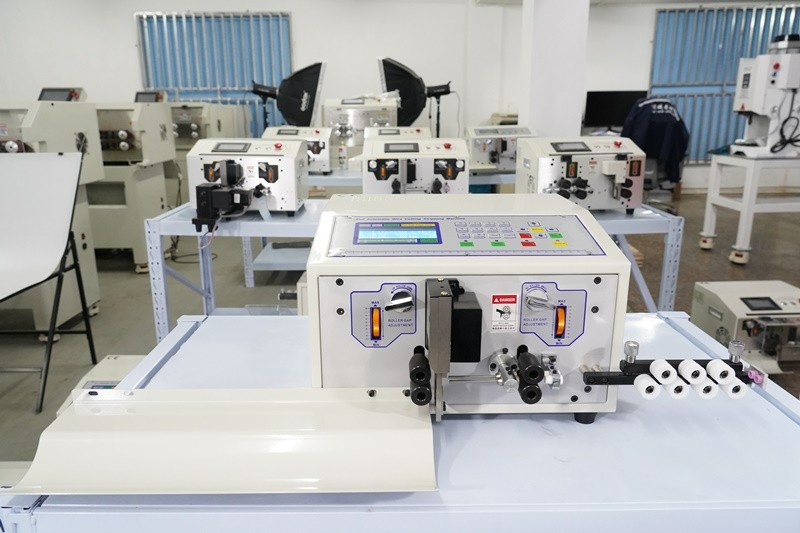

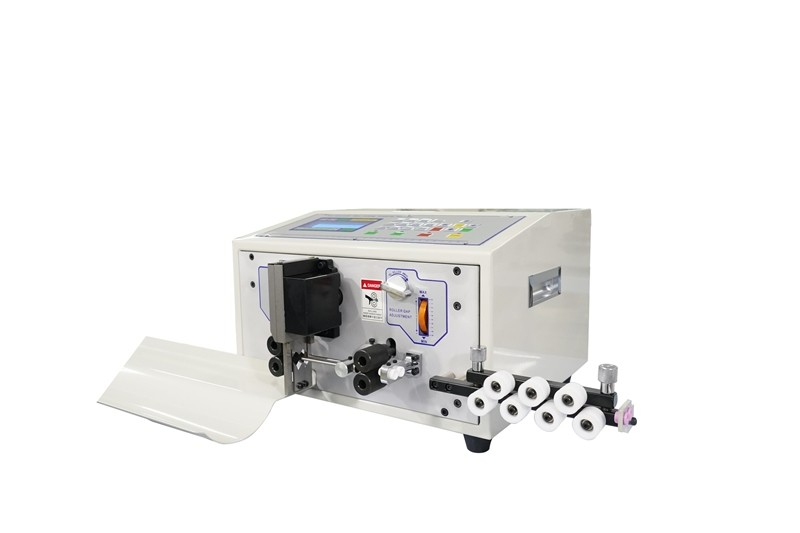

This is a fully automatic cable cutting and stripping machine. It can complete wire cutting, wire stripping at both ends, and wire stripping in the middle.

Model: HL-SDB-N
Brand: Hilong

EMAIL

ModelHL-SDB/N

Features:

○ Function: wire cutting, both ends stripping, middle stripping


Specifications:

Weight28KG Power300W

Electrical connection: 110V/220V 50HZ/60HZ

Operation interface: English/Chinese (LCD display)

Machine dimension: 460*470*325mm

Wire length range110000mm

Strip lengthFront end:0-30;rear end:0-15mm

Length accuracy ± (0.002xL)mm

Intermediate peeling times:13 times

Wire cross section:  Double wire 0.12.5mm²; Single wire 0.14mm²

Max conduit inside diameter:6mm

Wire material:PVC,Teflon,Braided,Fiberglass wire

Blade material: hard tungsten steel

Transport speed: (L=100MM piece/hour 5000-10000 pieces

Driving mode: four-wheel drive (silent hybrid stepper motor, 0.1mm forward per step)

Stripping speed: The cutting speed and wire feeding speed can be adjusted respectively.

(0 is the slowest, 9 is the fastest)
