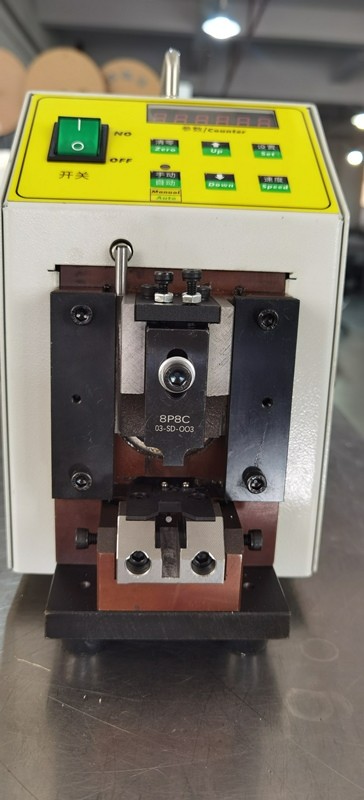

Crystal head crimping machine

Features：

 Adopting variable frequency start stop technology, without brake device, precise positioning parking, high-speed operation without fear of brake wear.

2. The needle pressing knife and adhesive pressing knife can be adjusted independently, and changing the model can adjust the pressure quickly and conveniently.

The trigger start switch adopts a low-voltage signal to start, with no risk of leakage or contact burning, safe and efficient.

Adjustable motor controller that can adjust the running speed of A according to usage requirements.

The digital crimping counting device can clearly record 5 times of crimping production

advantage

Variable frequency start stop technology with no brake design. High speed crimping without brake wear completely solves the equipment connection failure caused by brake wear.

Specifications：

Processing range: 2-10P crystal head (tail clip can be customized)

Crimping speed: 3 times/second

Compression stroke: 26mm

Size (length * width * height): 359x143 x262 mm

Weight: approximately 10KG

Voltage and power: AC220V/60Hz/140W Operation mode: touch start

Crimping accuracy: ± 0.10
