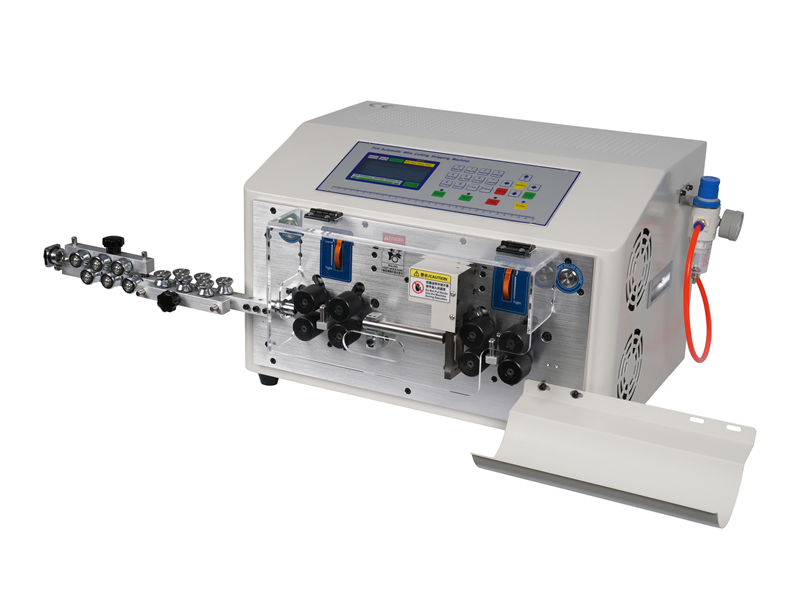

8 wheels, 25mm² wire stripper with lifting wheel

Model：HL-MAX1-8/N

Features:

○ Function: cable cutting and stripping
○ Optional: MES system, Internet of Things system, fixed-point coding function, middle stripping function, external auxiliary equipment alarm;
○ User-friendly system with intuitive operation via 7” color touchscreen;
○ Modular interface, easy to link accessories and peripheral equipment;
○ Modular design, can be upgraded in the future;
○ Various accessory options to customize the system. Special cable processing, non-standard customization.

Specifications:

Weight：50KG

Machine dimension: 560*460*365mm

Power：650W

Operation interface: English/Chinese (LCD display)

Wire length range: 1～10000mm

Strip length：Front end:0-80; rear end:0-80mm

Length accuracy: less than 0.002xL mm

Wire cross section:  0.2～25mm²  ( BV single strand wire 6mm²)

Max conduit inside diameter:￠11mm

Intermediate peeling times:13 times

Blade material:  High-speed steel

Transport speed: (L=100MM piece/hour） 3000-5000 pieces

Driving mode:eight-wheel drive (silent hybrid stepper motor, 0.1mm forward per step)

Stripping speed: The cutting speed and wire feeding speed can be adjusted respectively.

(0 is the slowest, 9 is the fastest)
