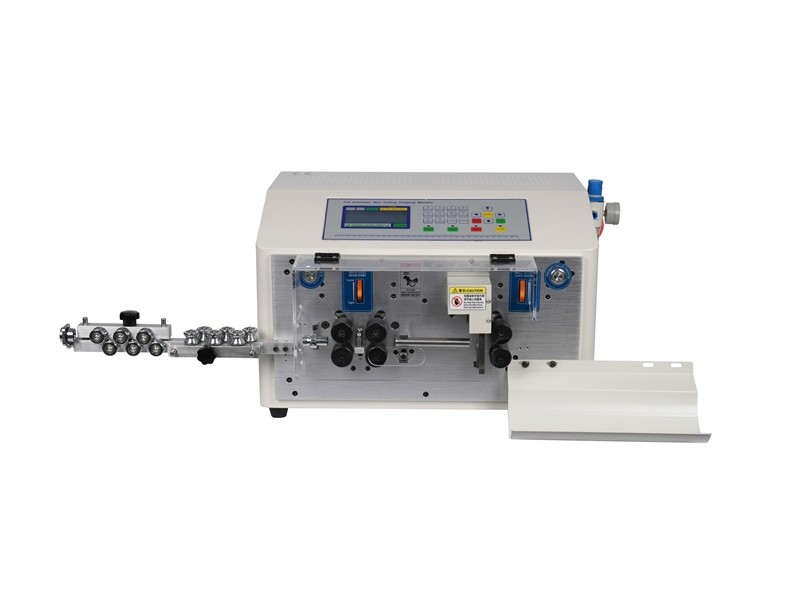

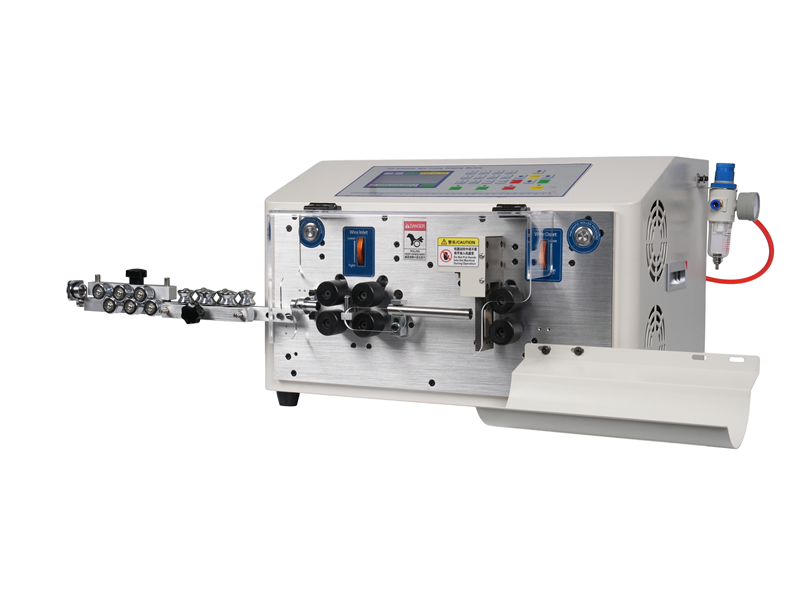

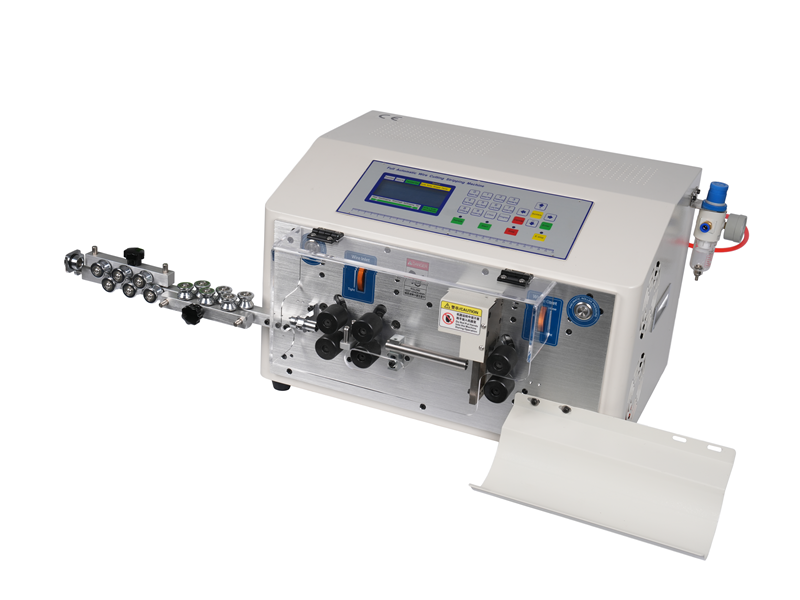

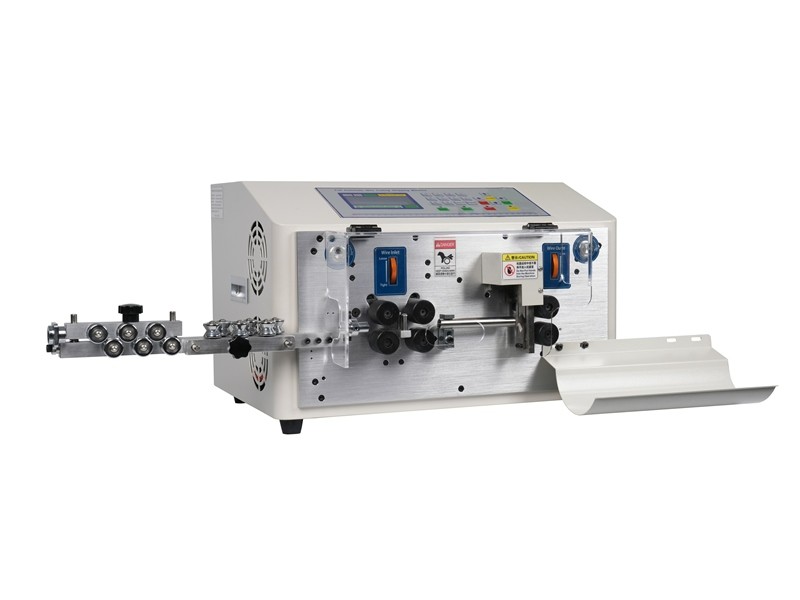

6 wheels, 25mm² wire stripper

With its advanced automation capabilities, this cutting and stripping machine eliminates the need for manual intervention, streamlining your production process and maximizing productivity. Its cutting-edge technology guarantees consistent and precise cuts, while the stripping function effortlessly removes insulation materials, leaving you with perfectly prepared cables.

Model: HL-MAX1-6/N
Brand: Hilong

EMAIL

ModelHL-MAX1-6/N

Features:

○ Function: cable cutting and stripping
○ Optional: MES system, Internet of Things system, fixed-point coding function, middle stripping function, external auxiliary equipment alarm;

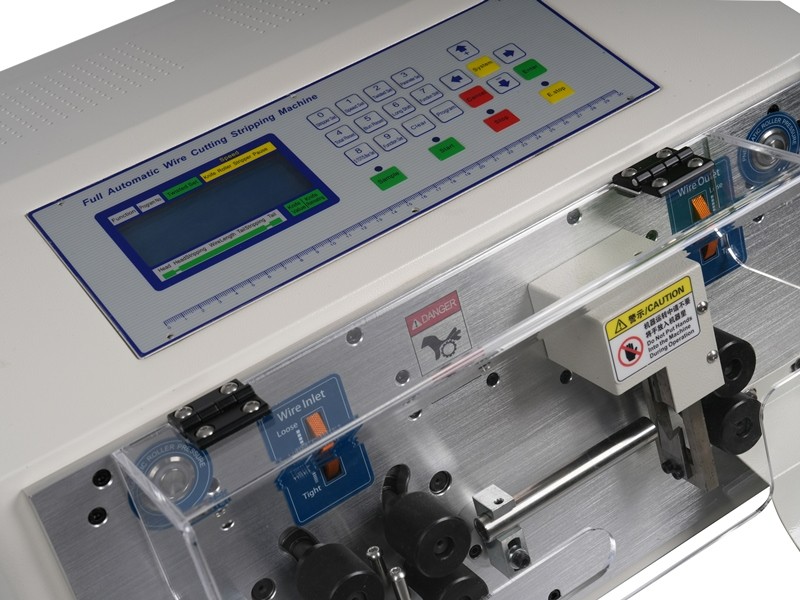

○ User-friendly system with intuitive operation via 7” color touchscreen;
○ Modular interface, easy to link accessories and peripheral equipment;
○ Modular design, can be upgraded in the future;
○ Various accessory options to customize the system. Special cable processing, non-standard customization.


Specifications:

Weight43KG      Power550W

Electrical connection: 110V/220V 50HZ/60HZ

Operation interface: English/Chinese (LCD display)

Machine dimension:560*460*365mm

Wire length range: 110000mm

Strip lengthFront end:0-80; rear end:0-50mm

Length accuracy ± (0.002xL)mm

Intermediate peeling times:13 times

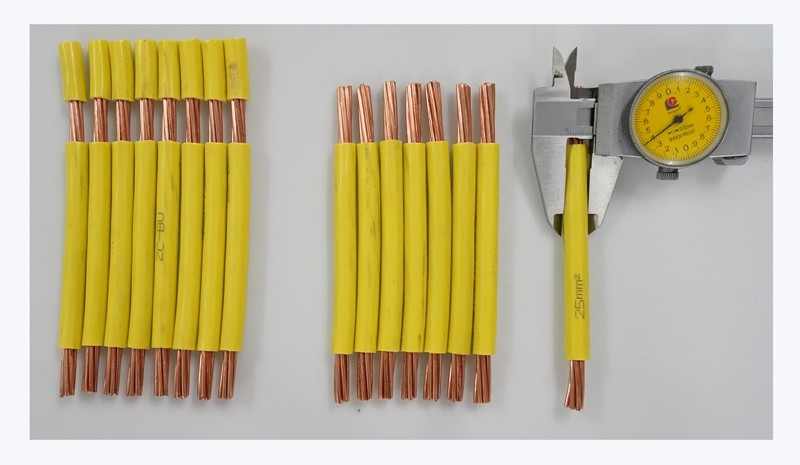

Wire cross section:  0.225mm²  ( BV single strand wire 6mm²)

Max conduit inside diameter:11mm

Wire material:PVC,Teflon,Braided,Fiberglass wire

Blade material:  High-speed steel

Transport speed: (L=100MM piece/hour 3000-4000 pieces

Driving mode:six-wheel drive (silent hybrid stepper motor, 0.1mm forward per step)

Stripping speed: The cutting speed and wire feeding speed can be adjusted respectively.

(0 is the slowest, 9 is the fastest)
